Description:

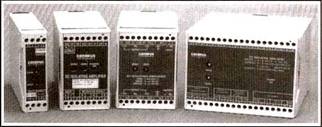

Analogue signal transducers have DC signal isolating amplifiers. The inputs include unipolar and bipolar voltage inputs (mV, 0-10V), current inputs (0-20 mA, 4-20 mA), thermocouple and RTD. Output ranges from 0-10 V, 0-20 mA, 4-20 mA, 0-10 kHz. Transducers include AC current & AC voltage transducers, frequency transducers, load cell amplifiers (with in-built excitation source), multi-channel DC isolating amplifiers, interface modules for analogue signal conditioning and function generation, 4 and 8 channel analogue signal multiplexer units and two wire transmitters. They provide excellent accuracy and linearity over measurement range. 2 port and 3 port isolations (2 kV) are available. Fast response models for AC and pulsating DC signal isolation are also available. This transducer has wide power supply option, 24/48/110V DC, 110/230V AC, universal 90-260V AC, compact 35 mm DIN rail mounted design and proven reliability in industrial applications. Several thousand installations are working in automation systems and process industries including petrochemical, steel, pharmaceutical, cement and synthetic fibre.
