Automatic Cnc Measurement Systems

Company: Hytek Marketing
EMAIL INQUIRY for this product

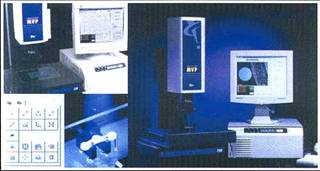

Description: Automatic Cnc Measurement Systems - Click To Visit Our Website SmartScope MVP from OGP is the cost-effective way of getting the benefits of completely automatic video-based inspection and measurement. SmartScope MVP includes a QVI controller running full-featured Basic-X metrology software. Precision zoom optics includes a precise 6.5 to I motorised zoom lens with an 85 mm working distance. Images stay in focus and on-axis throughout the zoom range. Optional lens attachments expand the magnification range to increase system versatility. The high-resolution digital colour camera provides high contrast, true-colour images. Structural integrity features a joystick-controlled precision mechanical bearing XYZ stage, with 0.5 µm linear glass scales mounted to a metrologically stable granite base and column. Illumination flexibility of the systems include a fibre optic on-axis (TTL) surface light, a fibre optic profile light, and a fibre optic ring light. Optional illumination includes an LED surface light and profile light, and the patented LED SmartRing Light.
