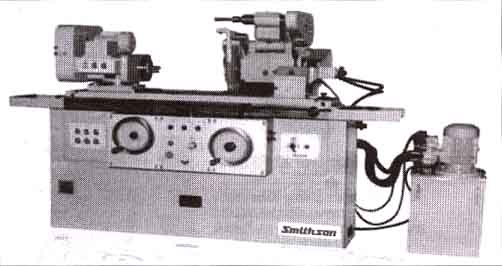

Hydraulic Universal Cylindrical Grinding Machine
Hydraulic Universal Cylindrical Grinding Machine has a body and slides, which are made of high grade cast iron, duly seasoned, rigid & strong enough to prevent distortion & wear, guide ways that are precision hand scraped/ ground to match the corresponding surface of slides. Table slide is hydraulically operated and the cross slide is hydro mechanically operated. Quick hydraulic retraction and forward movement of cross-slide is provided. The cut is taken manually to avoid damage to the work piece and grinding wheel. Work head is of a swiveling type, to grind angular as well as conical jobs. The machine is fully installed with electric motors, switchgears and wiring, normally arranged to suit the supply of 400/440V, 3-phase AC 50 Hz. Standard equipments include one coolant pump fitted on tank, one dressing tool holder (optional), one grinding wheel, grease gun, oil can, two dead centers, key spanners one set and wheel flange.
