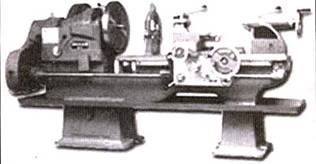

Lathe Machine

Description: A range of lathe machines, available in various models like M-1 A 1676 mm (5-6"), M-1 2135 mm (7'-00"), M-2 2743 mm (9-00") and M-3 3048 mm (10'-00") is offered from Kirti Enterprise. These are durable and reliable lathe machines having 254 mm (0'-10") centre height. Model MI A comes with the following specifications: It has a bed length of 1678 mm and the admit between centre of 585 mm. The height of centre over flat bed ways measures 254 mm. The maximum swing over bed is 495 mm, the maximum swing over cross slide is 285 mm and the maximum swing in gap is 720 mm. The length of gap in front of face plate measures 225 mm, the diameter of hole through spindle measures 52 mm and has 8 spindle speeds.
