Description:

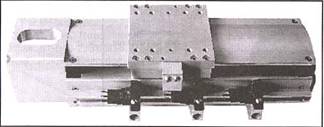

The ultra intelligent actuator is a high speed positioning system, which incorporates either a precision ball rail and ball screw drive or a belt drive. Apart from that, it is specially designed to transport heavy loads at high production speeds complementing the entire family of modular linear motion system. Its precision engineered flexible design includes a wide range of added-on accessories that are ideally suitable for single- and multi-axis applications providing a cost effective methods of assembly and integration. The company provides a stroke range of 50 to 1800 mm in ball screw actuators and 50 to 3800 mm in timing belt actuators. The maximum dynamic load capacity up to 13000N is available. The repeatability accuracy is ±5 microns. A wide range of accessories like motor mounting (standard 16, 23 and 34 NEMA sizes or customised motor mount), sensor rail, sensors, couplings (Oldham, flexible, bellow), is also available. The manufacturer has attained class 10 for in-house clean room actuators. Certified by PSB Corporation according to Federal Standard 209e, it is now even more confident to assure its customers about the product.
