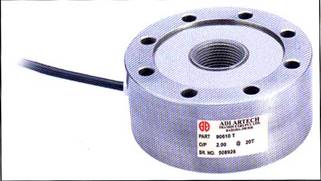

Pan Cake Universal Load Cell Model 90610-T
The pan cake load cell is developed by Adi Artech, established in 1991 in collaboration with Artech Industries Inc., USA. This load cell is made from heat treated stainless steel of 17-4 PH, which is suitable for harsh, corrosive and hygienic industrial applications. It is sealed with IP 68 degree of protection class and it has long life. It is available in capacities from 500 kgf to 100TF with a safe over loading of 150% rated capacity. Standard output is 2.0 mV/V with an excitation voltage of 10V DC, with the maximum of 15V DC, and with the temperature compensated range of 0-60°C. The load cell 90610-T is available with integral thread and it is easy to install. Applications include force and impact test, tank level measurement, tank, silo and hopper weighing, weighbridge, low profile floor scale, tensile testing and automation applications in various industries like process, pharma, food, packaging, textile and many others. This model is also available with integral load button, Model 90610-B with capacities from 50 kgf to 100 TF and Model 90610- MINI, with capacities from 50 kgf to 1 TF. The company also designs this model to suit custom- built applications.
