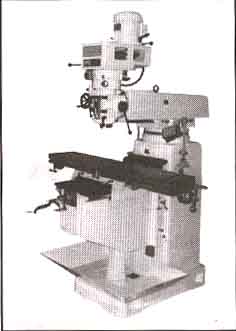

Vertical Milling Machine
Vertical Milling Machine features good rigidity and undistorted Meehanite casting, large diameter chromed quill & good abradability, special design & easy operation, Turcite B on X axis & Y axis, and dovetail slide way on X/Y/ Z axis. The specifications include table size of 1067 x 230 mm and T -slots (size x No x distance) of 16 x 3 x 64 mm. The machine has a longitudinal of travel of 660 mm along the X-axis, cross travel of 335 mm along the Y-axis, and knee travel of 350 mm. The spindle motors have 3 HP power with 16 speeds. The machine has the quill distance of 86 mm, quill travel of 127 mm, quill feed mm/res ranging 0.04-0.08-0.16, taper of spindle of R8 or NST 30, swiveling angle of 90° each side, over arm travel of 310 mm, and spindle to table distance measures 445 mm. The standard accessories include draw bar, tool box with tools, one-shot lubrication system, switch and dust protecting cover. Optional accessories include cooling system, power feed align, digital read out 2 axis, digital read out 3 axis, 6" angle vice and 52-piece clamping kit. Machine Tools Traders (Madras) offers vertical milling machine, the B-2Smodel.
