High Flow Valve, ½ '

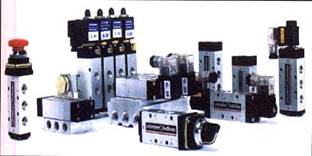

The high flow valve range ½" series is introduced by Schrader Duncan Ltd, Pneumatics Division, a leading manufacturer of a wide range of pneumatic products. These are new generation spool valves with higher flow capacities. The internal construction is of moving spool type and uses unique wear compensating dancing seals concept, for quick response time and long life to the valves. The design also eliminates conventional internal spacers, which reduces the possibility of dirt particles from trapping inside and making the valve ideal for adverse working conditions. These valves are available in 3/2, 5/2 and 5/3 versions with solenoid, pilot and different manual actuations. They are also available in compact gang manifolding design in sub-base version, which is useful for the ease of servicing. The working pressure for the above range is from 1.5 kg/cm2 to 10 kg/cm2. Flow rate capacity (Cv) is 1.3 for ¼" port size and 2.2 for 3/8" and ½" port size. The solenoid coil rating is 3 W/5 VA and is available in 230V AC, 110V AC and 24V DC voltages.
